Overview

Isolation measurement, isolation withstand voltage up to 6kV @ 50Hz, 1 minute

It can measure DC and AC current. Minimum current conductor impedance: 0.08m Ω

Surge current withstand capacity of 20KA 8 / 20us and response time as low as 4us

Optional unidirectional current detection mode, wide working temperature range: - 40 ℃ ~ 125 ℃

Wide range of measured current: 50A ~ 200A high accuracy: accuracy error < 1% at room temperature and accuracy error < 3% at working temperature

Strong driving ability, support output port connected to 2K Ω load

Extremely simple peripheral circuit

It is not disturbed by wire magnetic field, external magnetic field and geomagnetic field

Independent research and development without technology dependence

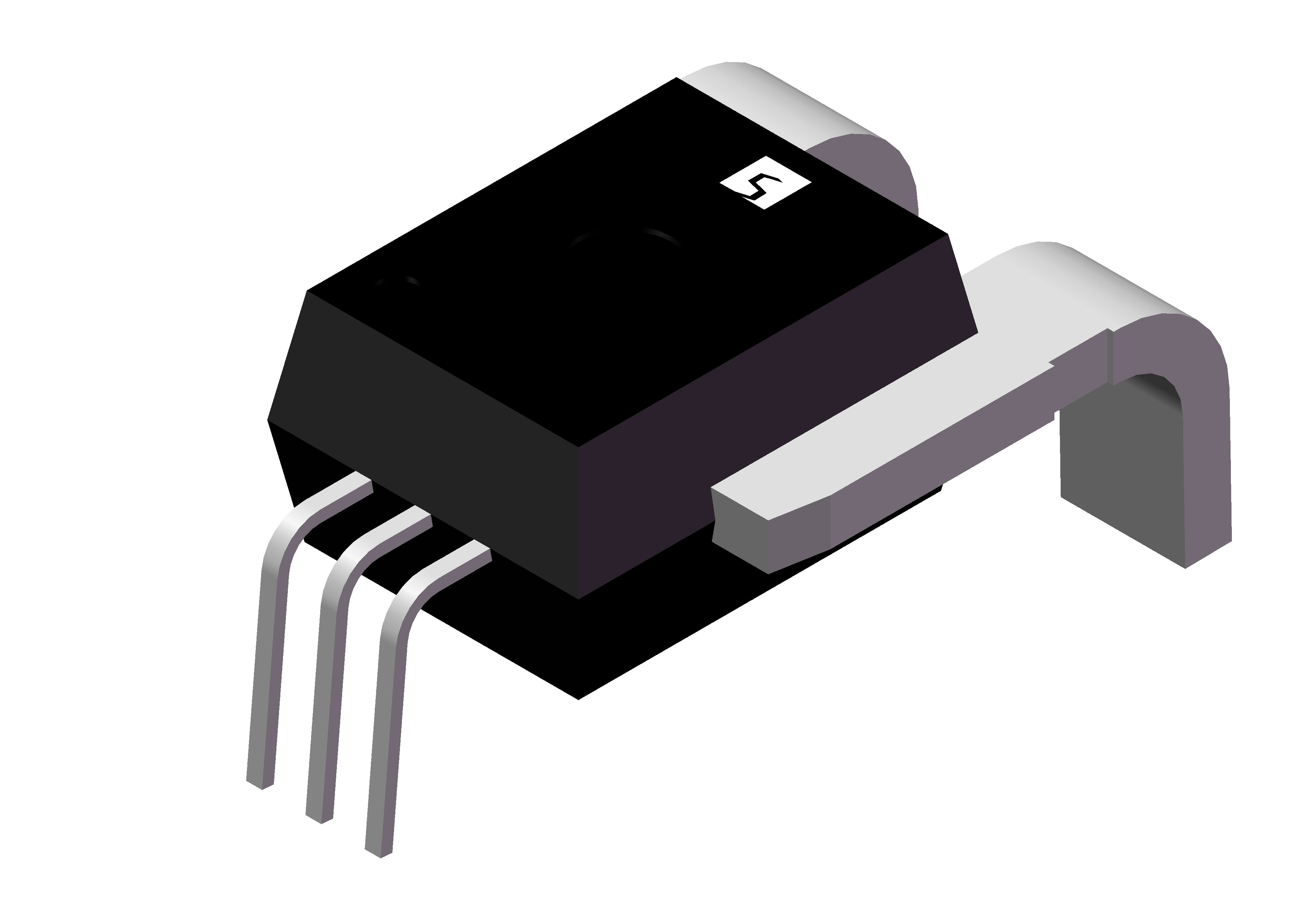

Sc780 is a member of Xinggong micro fully integrated current sensor product line. It is the industry's first fully integrated current detection module with fully automatic plastic packaging assembly, and the industry's first fully autonomous and controllable open-loop Hall current sensor module developed from chip design to module assembly process. This product achieves a current conductor impedance as low as 0.08m Ω in the semiconductor plastic packaging process, which makes it applicable to power systems requiring continuous measurement up to 200A. The sensor integrates a low impedance primary conductor, a low hysteresis core and a self-developed linear Hall IC. The sc780 series of Xinggong micro is an isolated current detection chip based on the open-loop Hall sensor detection principle. The current wire at the high voltage side is introduced into the package body. Based on the magnetic effect of current, the equivalent magnetic field generated around the measured wire is polymerized by the magnetic core. After being induced by the magnetic sensor with the built-in chip, it is converted into a processable equivalent voltage signal. The voltage signal is read and amplified by the built-in high-precision ADC, and combined with the digital calibration technology, such as temperature, noise and hysteresis are removed Finally, the voltage value which is close to the ideal ratio of the measured current value is output to realize the isolated current measurement. Sc780 adopts automatic production and processing, which can bring incomparable consistency, high quality and high reliability to customers. The product can be used for AC or DC current measurement, applied to UPS, charging pile, inverter, white household appliances and other industrial, commercial and communication systems. Xinggong microelectronics is committed to the research of core chip technology, in order to bring customers the best current detection solutions for the purpose.

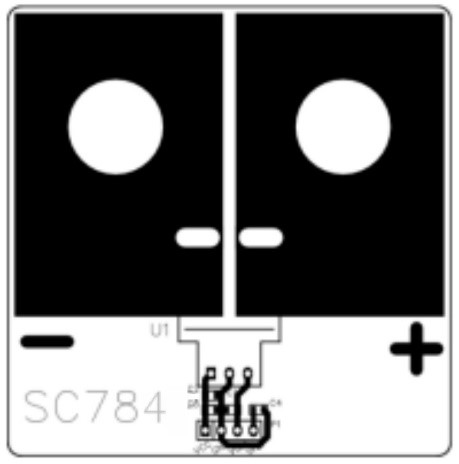

Assessment kit

SC780
